Acumen IQ cuff

Smart, noninvasive hemodynamic monitoring

acumen iq cuff
acumen iq cuff
acumen iq cuff

This first-of-its-kind noninvasive solution unlocks Acumen Hypotension Prediction Index (HPI) software. It also provides continuous blood pressure measurements and advanced hemodynamic parameters, giving you insight to your patients' hemodynamic status.

Unlock icon
Unlock icon
Unlock icon

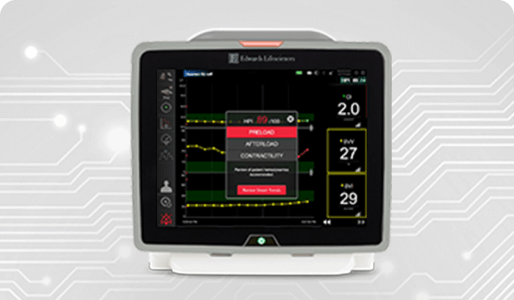

Unlocks Acumen HPI software

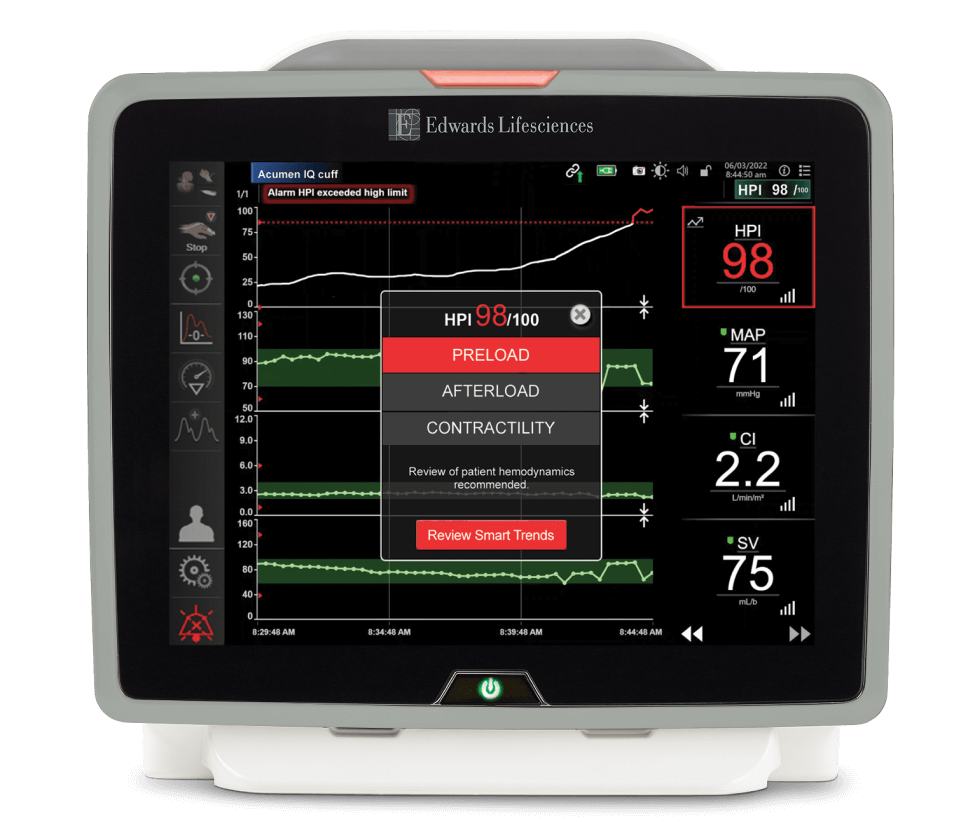

Acumen IQ cuff unlocks the first-of-its-kind technology designed to help predict future hypotensive events*.

*A hypotensive event is defined as MAP <65 mmHg for a duration of at least one minute.

Noninvasive icon
Noninvasive icon
Noninvasive icon

Offers noninvasive monitoring

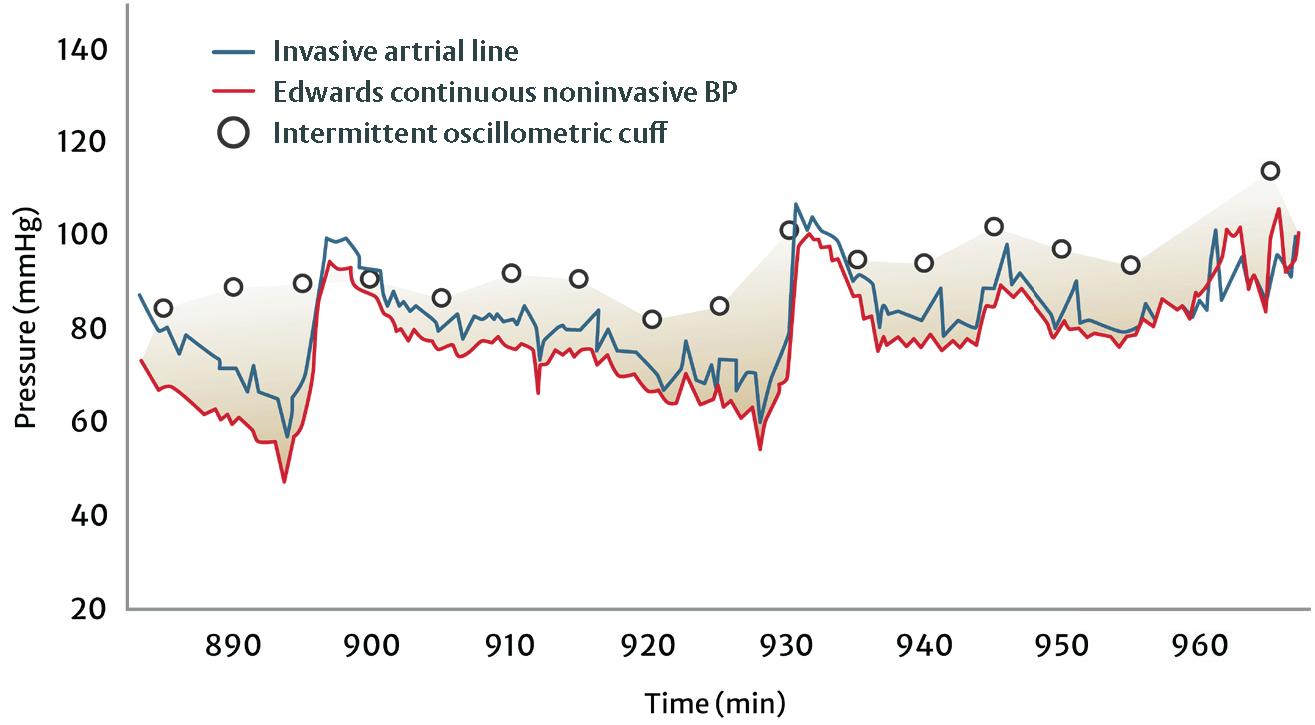

Accurately measures continuous blood pressure and hemodynamic parameters for patients who don't need, or can't have, an arterial line.1

User icon
User icon
User icon

Enables individualised patient care

An advanced hemodynamic monitoring solution that helps guide individualized treatment decisions.

Features of Acumen IQ cuff

Acumen IQ cuff
Acumen IQ cuff
Acumen IQ cuff

Acumen IQ cuff is available on the HemoSphere advanced monitoring platform. This noninvasive finger cuff unlocks Acumen HPI software and enables you to proactively optimise perfusion using continuous blood pressure and advanced hemodynamic parameters. The finger cuff provides automatically calculated, beat-to-beat hemodynamic information and offers you access to advanced hemodynamic parameters for patients who don’t need, or can’t have, an arterial line.

Advanced hemodynamic parameters
Advanced hemodynamic parameters
Advanced hemodynamic parameters

Advanced hemodynamic parameters

  • Hypotension prediction index (HPI)
  • Maximum slope of the arterial pressure upstroke (dP/dt)
  • Dynamic arterial elastance (Eadyn)
  • Stroke volume (SV)
  • Stroke volume variation (SVV)
  • Mean arterial pressure (MAP)
  • Cardiac index (CI)
  • Systemic vascular resistance (SVR)
Model numbersDescriptionUnit of Measure
AIQCSAcumen IQ cuff - smallEA
AIQCMAcumen IQ cuff - mediumEA
AIQCLAcumen IQ cuff - largeEA

The easy application and snug fit of the Acumen IQ finger cuff self-coiling design eliminates placement errors on a patient to improve consistency.

Clinical application

Manage perfusion, noninvasively

Acumen IQ cuff is available on the HemoSphere advanced monitoring platform
Acumen IQ cuff is available on the HemoSphere advanced monitoring platform
Acumen IQ cuff is available on the HemoSphere advanced monitoring platform

Maintaining necessary peripheral perfusion requires adequate peripheral blood pressure and adequate cardiac output. Acumen IQ cuff offers advanced hemodynamic parameters and continuous blood pressure to help you monitor perfusion, and access to the Acumen HPI software provides you insight to determine the root cause of instability.

Find out more about the risk of hypotension
Acumen IQ cuff is available on the HemoSphere advanced monitoring platform
Acumen IQ cuff is available on the HemoSphere advanced monitoring platform
Acumen IQ cuff is available on the HemoSphere advanced monitoring platform

Managing volume

frank-starling graph
frank-starling graph
frank-starling graph

Dynamic and flow-based parameters are more informative than conventional parameters in determining fluid responsiveness and may help guide individualized volume administration in patients and avoid excessive or insufficient administration.2

Continuous access to pressure and flow parameters allows you to evaluate hemodynamic instability and guide appropriate treatment. When managing perfusion, stroke volume can be optimized using the patient’s own Frank-Starling curve.

frank-starling graph
frank-starling graph
frank-starling graph

Avoidance of hypotension and strategies to optimize fluid management in surgical patients are two modifiable factors that may contribute to improved patient outcomes.

Technical overview

1 / 5

Easy-to-use finger cuff

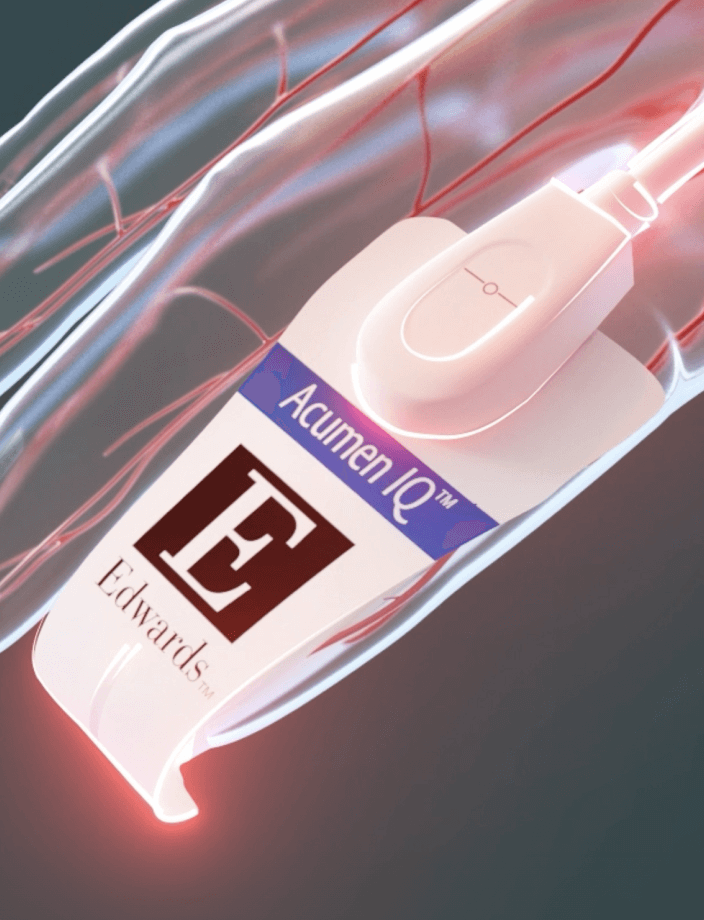

The Acumen IQ finger cuff design reduces variability in application. The easy-to-use self-coiling mechanism within the interior of the cuff wraps around the patient’s finger and offers consistent snugness and usability.

Easy-to-use finger cuff
Easy-to-use finger cuff
Easy-to-use finger cuff

Volume clamp method

The essence of the volume clamp method involves clamping the artery to a constant volume by dynamically providing equal pressure on either side of the arterial wall. The volume is measured by a photo-plethysmograph built into the cuff. The counter pressure is applied by an inflatable bladder inside the cuff and is adjusted 1,000 times per second to keep the arterial volume constant. Continuous recording of the cuff pressure results in real-time finger pressure waveform.1

Volume clamp method
Volume clamp method
Volume clamp method

The Physiocal method - Physiological Calibration

Physiocal is the real-time method for determining the proper arterial ‘unloaded’ volume, i.e., the volume without a pressure gradient across the arterial wall. Physiocal analyzes the curvature and sharpness of the plethysmogram during short episodes of constant pressure levels. It then automatically and periodically recalibrates the system allowing accurate tracking of physiologic changes, e.g., in vasomotor tone. Calibration interval starts at 10 beats, but it increases to every 70 beats as stability increases. Physiocal interval >30 beats is considered reliable.3

Physiological calibration
Physiological calibration
Physiological calibration

Brachial pressure reconstruction

Clinical standard for noninvasive BP is brachial level. Acumen IQ cuff reconstructs the brachial arterial pressure waveform from the finger arterial pressure waveform. The reconstruction algorithm is based on a vast clinical database.4

Brachial pressure reconstruction
Brachial pressure reconstruction
Brachial pressure reconstruction

Cardiac output calculation

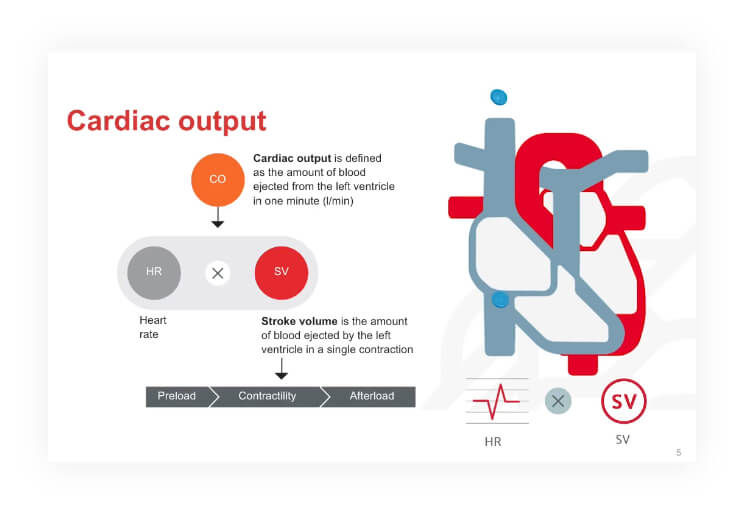

Stroke volume is calculated by an algorithm based on an improved pulse contour method. Cardiac output results from stroke volume times heart rate, and is updated every beat.5

Cardiac output calculation
Cardiac output calculation
Cardiac output calculation
Easy-to-use finger cuff
Easy-to-use finger cuff
Easy-to-use finger cuff
Volume clamp method
Volume clamp method
Volume clamp method
Physiological calibration
Physiological calibration
Physiological calibration
Brachial pressure reconstruction
Brachial pressure reconstruction
Brachial pressure reconstruction
Cardiac output calculation
Cardiac output calculation
Cardiac output calculation

Easy-to-use finger cuff

The Acumen IQ finger cuff design reduces variability in application. The easy-to-use self-coiling mechanism within the interior of the cuff wraps around the patient’s finger and offers consistent snugness and usability.

Volume clamp method

The essence of the volume clamp method involves clamping the artery to a constant volume by dynamically providing equal pressure on either side of the arterial wall. The volume is measured by a photo-plethysmograph built into the cuff. The counter pressure is applied by an inflatable bladder inside the cuff and is adjusted 1,000 times per second to keep the arterial volume constant. Continuous recording of the cuff pressure results in real-time finger pressure waveform.1

The Physiocal method - Physiological Calibration

Physiocal is the real-time method for determining the proper arterial ‘unloaded’ volume, i.e., the volume without a pressure gradient across the arterial wall. Physiocal analyzes the curvature and sharpness of the plethysmogram during short episodes of constant pressure levels. It then automatically and periodically recalibrates the system allowing accurate tracking of physiologic changes, e.g., in vasomotor tone. Calibration interval starts at 10 beats, but it increases to every 70 beats as stability increases. Physiocal interval >30 beats is considered reliable.3

Brachial pressure reconstruction

Clinical standard for noninvasive BP is brachial level. Acumen IQ cuff reconstructs the brachial arterial pressure waveform from the finger arterial pressure waveform. The reconstruction algorithm is based on a vast clinical database.4

Cardiac output calculation

Stroke volume is calculated by an algorithm based on an improved pulse contour method. Cardiac output results from stroke volume times heart rate, and is updated every beat.5

Product implementation

setup guide thumbnail
setup guide thumbnail
setup guide thumbnail

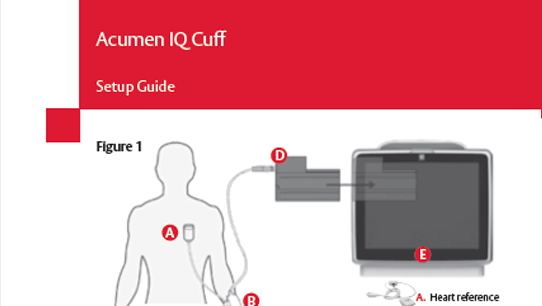

Acumen IQ cuff setup guide

Edwards clinical education

Hemodynamic education empowering clinical advancement

With a long-term commitment to improving the quality of care for surgical and critical care patients through education, Edwards clinical education meets you no matter where you are in the learning process — with a continuum of resources and tools that continuously support you as you solve the clinical challenges facing you today, and in the future.


Most popular

normal pdf thumb
normal pdf thumb
normal pdf thumb

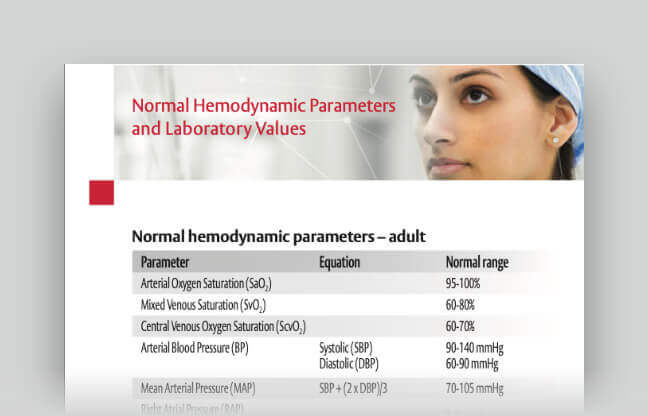

Pocket card: Normal haemodynamic parameters
