TRIFORMIS RESILIA tricuspid valve
Resources
Model 11300T

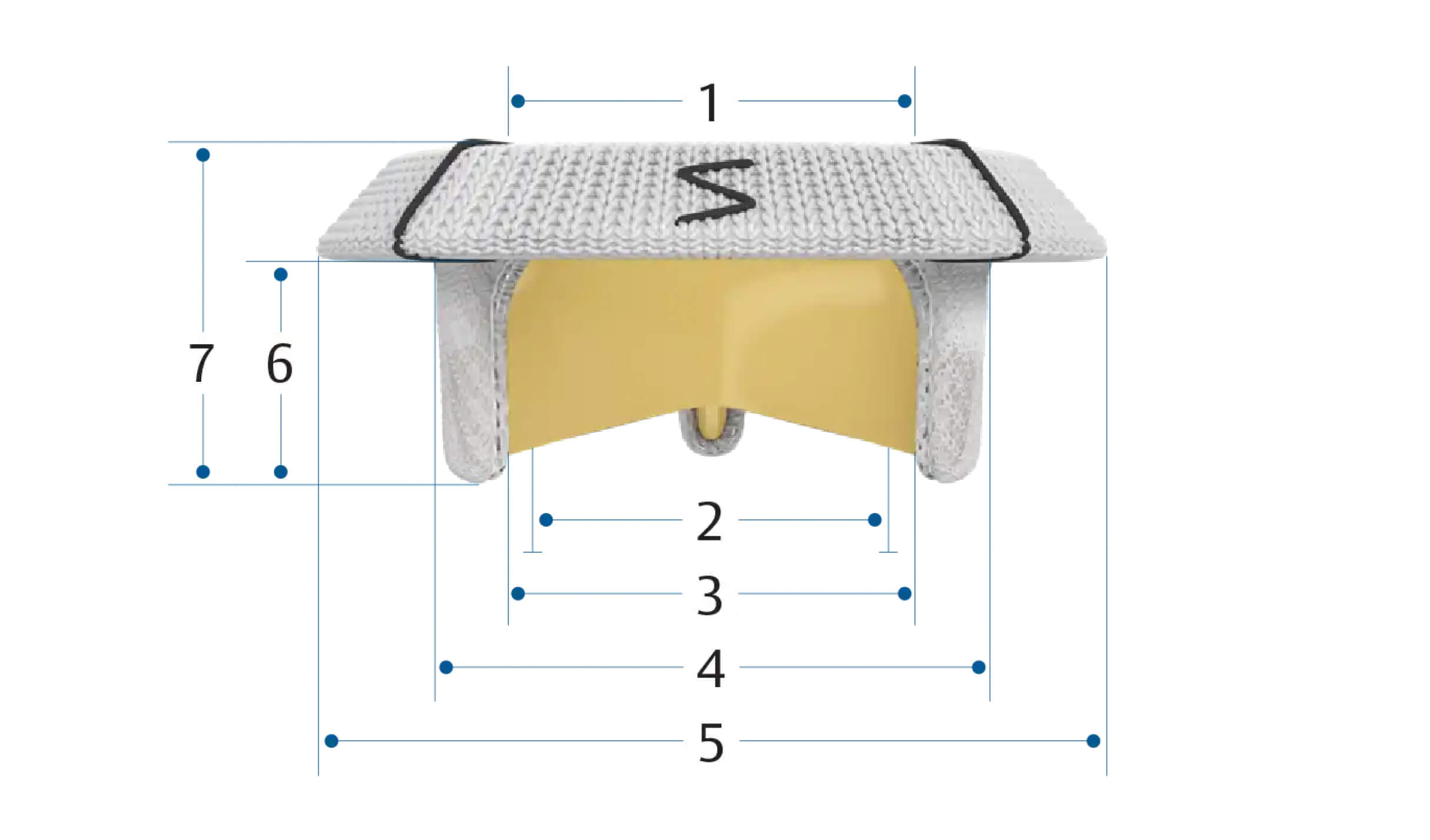

| Valve size | 25 mm | 27 mm | 29 mm | 31 mm | 33 mm |
| 1. Inflow orifice diameter (mm) | 23.0 | 25.0 | 27.0 | 29.0 | 29.0 |
| 2. Effective orifice diameter (mm) | 19.5 | 21.0 | 23.0 | 25.0 | 25.0 |
| 3. Stent diameter (wireform, mm) | 25.0 | 27.0 | 29.0 | 31.0 | 31.0 |
| 4. Valve housing external diameter (mm) | 27.5 | 29.5 | 31.5 | 33.5 | 33.5 |
| 5. External sewing ring diameter (mm) | 37.5 | 40.0 | 42.5 | 44.5 | 46.0 |
| 6. Effective profile height (mm) | 10.0 | 11.0 | 11.5 | 12.0 | 12.0 |
| 7. Total profile height (mm) | 15.0 | 16.0 | 17.0 | 18.0 | 18.0 |
Accessories
| Model | Description |
| 1173B | Individual barrel sizer |
| SET1173 | Tray only |
Handle
| Model | Description |
| 1140M | Nitinol handle |
| 1141M | Stainless steel handle |
Important Safety Information
TRIFORMIS RESILIA Tricuspid Valve
Indications: For use in replacement of native or prosthetic tricuspid heart valves.
Contraindications: The TRIFORMIS RESILIA tricuspid valve is contraindicated in patients who have untreatable hypersensitivity to nitinol alloys (nickel and titanium).
Complications and Side Effects: Thromboembolism, valve thrombosis, hemorrhage, hemolysis, regurgitation, endocarditis, structural valve deterioration, nonstructural dysfunction, stenosis, arrhythmia, transient ischemic attack/stroke, congestive heart failure, myocardial infarction, ventricular perforation by stent posts, any of which could lead to reoperation, explantation, permanent disability, and death.
CAUTION: US law restricts this device to sale by or on the order of a physician. See Instructions for Use for full prescribing information.
