ClearSight system

Noninvasive continuous hemodynamic monitoring

ClearSight system

The Critical Care product group is now part of BD (Becton, Dickinson and Company). Edwards Lifesciences is the manufacturer of the products.

A noninvasive solution that enables clinical decision support to help optimize patient perfusion

The ClearSight system provides continuous blood pressure and advanced hemodynamic parameters from a noninvasive finger cuff.

Continuous data offered by the ClearSight system enables you to proactively optimize perfusion through hemodynamic management.

Advanced hemodynamic monitoring, simplified

Proactive decision support for individualized patient care

Noninvasive hemodynamic monitoring offered by the ClearSight system provides information to enable you to make proactive clinical decisions across the continuum of care, including moderate- to high-risk surgery patients, and can be utilized to manage your patients’ changing clinical situations in the hospital environment.

Graphical Trend screen
Graphical Trend screen on HemoSphere advanced monitor

Continuous noninvasive monitoring

Continuous noninvasive blood pressure (BP) from a noninvasive finger cuff in addition to key advanced hemodynamic parameters:

  • Cardiac Output (CO)
  • Stroke Volume (SV)
  • Stroke Volume Variation (SVV)
  • Systemic Vascular Resistance (SVR)
  • Mean Arterial Pressure (MAP)

Extend the benefits of hemodynamic monitoring

The ClearSight system gives you noninvasive access to automatically calculated, beat-to-beat hemodynamic information for a broader patient population, including patients in whom an arterial line would not be typically be placed.1

A versatile approach to continuous monitoring

The ClearSight system connects to your patient’s finger. Upon starting a measurement, the finger cuff can be used and re-applied for up to 72 hours on one patient. After 8 hours of continuous monitoring on a single finger, the finger cuff should be re-applied to another finger. To increase comfort, two ClearSight finger cuffs may be connected simultaneously to alternate the measurement between two fingers. This allows uninterrupted continuous monitoring up to 72 hours.

Now available on HemoSphere advanced monitoring platform

HemoSphere advanced monitoring platform provides a comprehensive view of hemodynamics and tissue oximetry, giving you confidence in knowing continuous oxygen saturation and perfusion for your patient. Full-range compatibility with noninvasive, minimally-invasive and catheter solutions allow you to pair a single monitor with the right device for your patient across different clinical settings and diverse patient profiles.

Model numbers

ModelDescription
ClearSight Finger Cuff Small (multi pack, 5)CSCS
ClearSight Finger Cuff Medium (multi pack, 5)CSCM
ClearSight Finger Cuff Large (multi pack, 5)CSCL
HemoSphere ClearSight upgrade kitHEMCSMUPG
HemoSphere smart recovery non-cardiac with ClearSight,
Acumen IQ sensor, FloTrac, and tissue oximetry module		HEMAQSR2
HemoSphere ClearSight moduleHEMCSM10
ClearSight brochure

1. Truijen, J et al. Noninvasive Continuous Hemodynamic Monitoring. Journal of Clinical Monitoring and Computing 2012;26(4):267–268.

Clinical application

The ClearSight system offers continuous clinical decision support to enable proactive clinical decisions for your moderate- to high-risk surgical patients and patients at risk for complications.

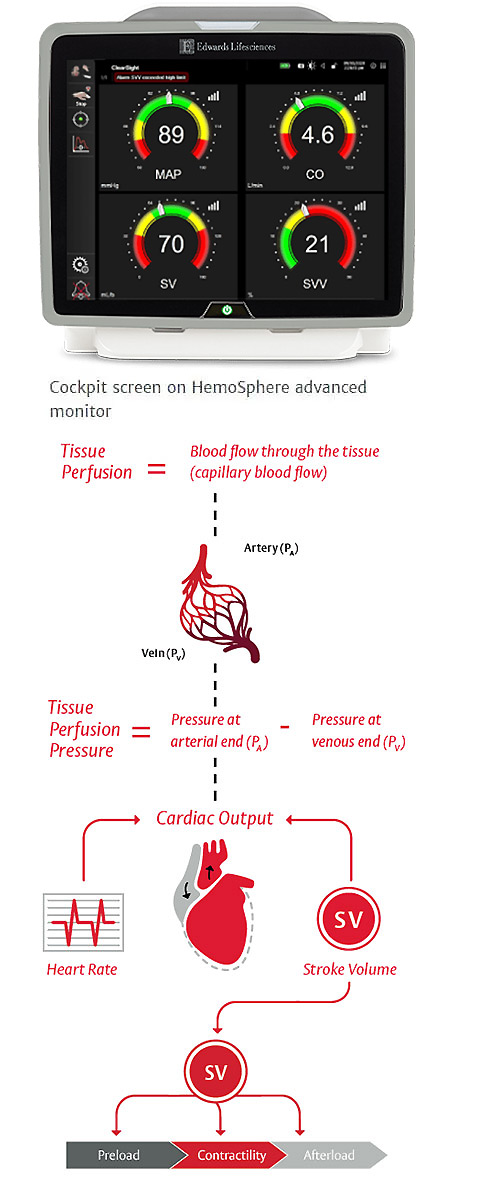

cockpit image

Hypotension management

Studies show associations between intraoperative hypotension and:

Increased risk of Acute Kidney Injury (AKI)
Cardiac & Non-Cardiac Surgery1

Myocardial Injury MINS
Leading cause of post-operative mortality within 30 days after surgery1

Cleveland Clinic researchers discovered that:2

  • Continuous noninvasive monitoring reduced the amount of IOH by nearly half when compared to intermittent blood pressure monitoring.
  • Early detection of hypotension by continuous hemodynamic monitoring allows for timely remedial actions, thereby reducing IOH.

Clarity through advanced hemodynamic parameters CO, SV, SVV, and SVR can help you determine if the cause of IOH is preload, afterload, or contractility.

  1. Salmasi, V., Maheshwari, K., Yang, G., Mascha, E.J., Singh, A., Sessler, D.I., & Kurz, A. (2017). Relationship between intraoperative hypotension, defined by either reduction from baseline or absolute thresholds, and acute kidney injury and myocardial injury. Anesthesiology, 126(1), 47-65
  2. Maheshwari, K et al. A Randomized Trial of Continuous Noninvasive Blood Pressure Monitoring During Noncardiac Surgery. Anesthesia & Analgesia, 2018 Aug; 127(2)424-431.

Technology overview

How does it work?

ClearSight system technology is based on two methods: the volume clamp method to continuously measure blood pressure (BP) and the Physiocal method for initial and frequent calibration.

1 / 4
Volume clamp method
The Physiocal method - Physiological Calibration
Brachial pressure reconstruction
Cardiac output calculation

Volume clamp method

The essence of the volume clamp method involves clamping the artery to a constant volume by dynamically providing equal pressure on either side of the arterial wall. The volume is measured by a photo-plethysmograph built into the cuff.

The counter pressure is applied by an inflatable bladder inside the cuff and is adjusted 1000 times per second to keep the arterial volume constant.

Continuous recording of the cuff pressure results in real-time finger pressure waveform.1

1. Peñáz J. Photoelectric measurement of blood pressure, volume and flow in the finger. 1973; Dresden 1973. p. 104

The Physiocal method - Physiological Calibration

Physiocal is the real-time method for determining the proper arterial ‘unloaded’ volume, i.e. the volume without a pressure gradient across the arterial wall. Physiocal analyzes the curvature and sharpness of the plethysmogram during short episodes of constant pressure levels. It then automatically and periodically recalibrates the system allowing accurate tracking of physiologic changes, e.g. in vasomotor tone

Calibration interval starts at 10 beats, but it increases to every 70 beats as stability increases. Physiocal interval >30 beats is considered reliable.1

1. Wesseling KH, Wit B, Hoeven GMA, Goudoever J, Settels JJ. Physiocal, calibrating finger vascular physiology for Finapres. Homeostasis. 1995;36:67-82.

Brachial pressure reconstruction

Clinical standard for noninvasive BP is brachial level. The ClearSight system reconstructs the brachial arterial pressure waveform from the finger arterial pressure waveform. The reconstruction algorithm is based on a vast clinical database1

1. Gizdulich P, Prentza A, Wesseling KH. Models of brachial to finger pulse wave distortion and pressure decrement. Cardiovasc Res. 1997;33:698-705. doi: 10.1016/S0008-6363(97)00003-5

Cardiac output calculation

Stroke volume is calculated by an algorithm based on an improved pulse contour method. Cardiac output results from stroke volume times heart rate, and is updated every beat1

1. Truijen J, van Lieshout JJ, Wesselink WA, Westerhof BE. Noninvasive continuous hemodynamic monitoring. J Clin Monit.Comput. 2012 Jun 14.

For blood pressure and cardiac output validation studies, download the ClearSight technology overview here.
